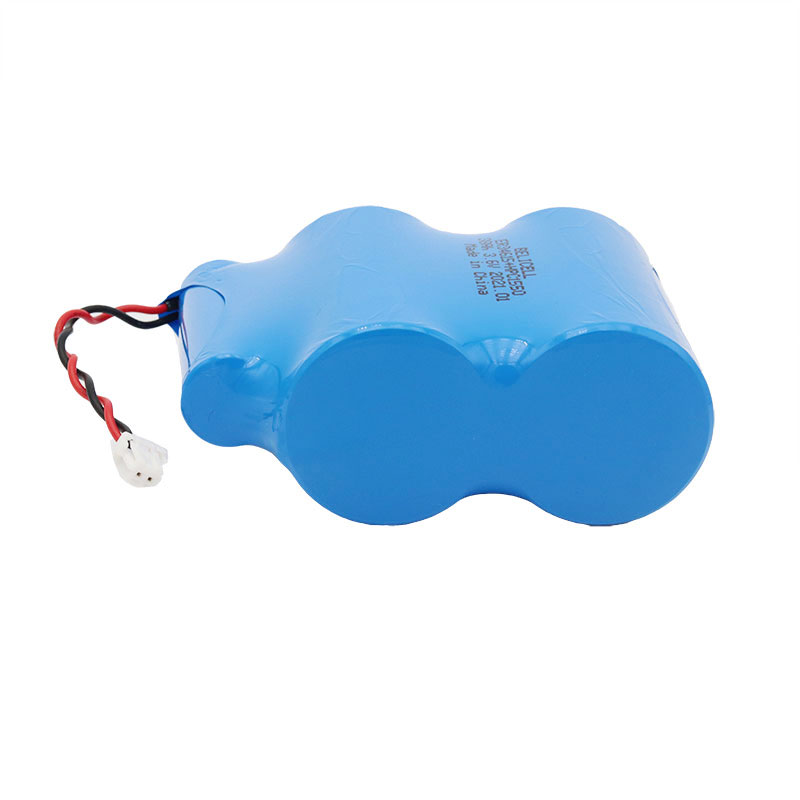

Li-SOCL2 Battery ER34615+Capacitor battery pack
Build Time:2021-06-04

Views:36

Product Type:Li-SOCL2 battery

Product Color:Blue

Product Price:$

Leave a message

Specification:

Name: Lithium Thionyl Chloride Battery(LiSOCl2)

Size:D

Dimension: 85mmX34.5X65mm

Model NO: ER34615+HPC1550

Nominal Capacity: 38Ah

Nominal Voltage: 3.6V

Max. Continuous Discharge Current : 230mA

Max. Pulse Discharge Current : 400mA

Weight Approx. : 230g

Self-discharge Rate: 1%

Operating Temperature: -55~85



Key Features

1.High Energy density

2.Wide range of operating temperature : -55℃--85

3.High and stable operating voltage

4.Self-discharge rate of less than 1% per year



Application:

Electronic meters (water, gas,heat),

Medical Equipment, Alarms and security systems,military equipment,cash registers,

Wireless devices,vehicle tracking devices,ETCs (Electronic Toll Collection Systems).

Automatic meter reading


Model    NoNominal    Voltage
(V)
Nominal    Capacity
(mAh)
Max    Pulse current
(mA)
ER14505+HPC15203.6V27002000
ER18505+HPC15303.6V40003000
ER34615+HPC15503.6V190005000
ER14250+LIC08203.6V12001000
ER14505+LIC10203.6V27003000
ER26500+LIC13203.6V90005000
ER34615+LIC16203.6V1900010000
ER34615+LIC18403.6V1900030000
